Product features
The ENVL-CL model is a product with two lightings: epi-illumination around the lens and transillumination on the box. The two lightings can be turned on/off individually. The newly designed, LED-exclusive slim head uses a board-mounted LED with high color rendering (Ra≧90) and heat generation. A flat, diffuser and protector will reduce the work and the light source as well as the glare unique to LEDs.
Epi-illumination can be used for external inspection, and transillumination can be used in to inspect the translucency of an object, its external parts, or fish-eye cameras as well as confirm the linings of a perforating hole.
Product Name
LED Illuminated Magnifier
Model

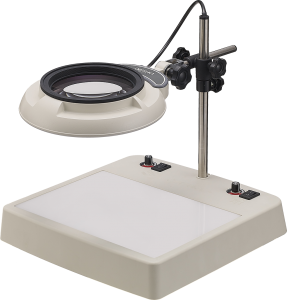

ENVL-CL (lightbox-type illuminated magnifier)
Product sepecifications
| Lens | |
|---|---|
| Magnifier Lens Magnification Lineup | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
| AR (anti-reflection) Coated Lens Lineup | Available / 2x, 3x, 4x, 6x, 8x, 10x |
| Lighting | |
|---|---|
| Light source | Epi-illumination side LED : High Color Quality White LED (CRI≧90) with Protective cover for diffusion. Transparent illumination side LED : White LED (CRI≧80) with Protective cover for diffusion. |
| Input voltage | 100～240V : 50/60 Hz : Plug Type A * It is possible to use up to 125～240V by changing the cord with attached AC plug. For more information, please contact your dealer. |
| Power consumption | 18W |
| Dimming Function | Available / 100 ～ 50% Each epi-illumination/transillumination can be turned on or adjusted individually. |
| Body | |
|---|---|
| Weight (Kg) | 3.2 (without lens / body weight) |
| Brace / Bar (diameter/mm) | ɸ16/ɸ13 |
| Operating temperature range | 5℃～35℃ |
| Dustproof and waterproof protection grade | IP30 (indoor use only) |
