Product features
The Recta replacement lens system has a rubber mounting frame set in the lens and has the compatibility to use lenses of 2x and 3.5x magnifications in one product. The prismatic lens physically cuts out the “distortion” that occurs around the outer periphery of the lens
Therefore, you may get an enlarged image with less aberration.
With the AR (anti-reflection) coated lens available, it improves detection and suppresses fatigue.
Product Name

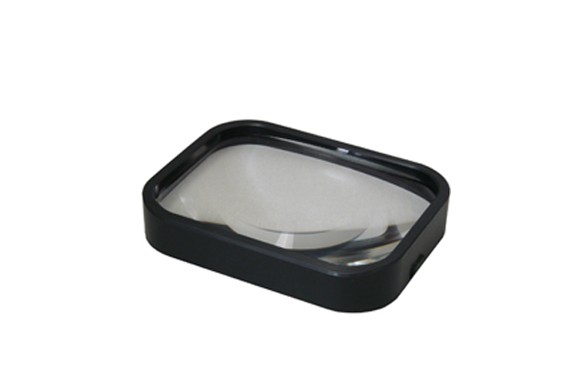

Recta system lens 3.5x
Product sepecifications
| Lens | |
|---|---|
| Magnification | 3.5x |
| Available lens dimension / eyepiece diameter (mm) | 139×103 |
| Eyepoint/distance between the eye and lens (mm) | 150 |
| Working distance / distance between the lens and the object (mm) | 120 |
| Lens Type | Recta-system lenses |
| AR (anti-reflection) Coated Lens Setting | Available |
| Lens Material | Optical glass |
| Lens Configuration | 1 piece |
| Weight (g) | 730 |
| Compatible models | O-LIGHT III, O-LIGHT III-L series |
