Product features
The interchangeable lens system has a rubber mounting frame set in the lens and has compatibility with lenses of various magnifications in one product. The high magnification lens of the replacement lens system has both a wide field of view and higher magnification compared to the microscope.
It is effective for inspection of high magnification and work using the illuminated magnifier currently in use.
Product Name

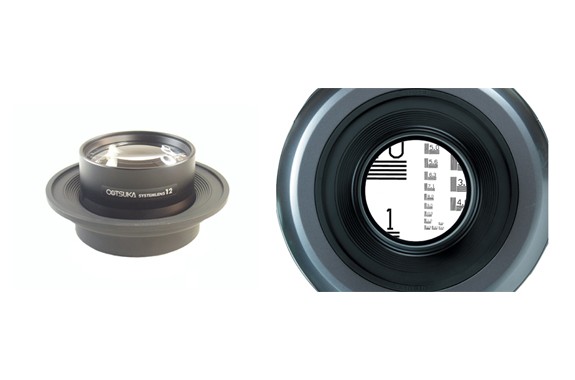

Interchangeable lens system
Round series 12x
Product sepecifications
| Lens | |
|---|---|
| Magnification | 12x |
| Lens dimensions/eyepiece diameter (mm) | ɸ90 |
| Eyepoint/distance between the eye and lens (mm) | 80 |
| Working distance / distance between the lens and the object (mm) | 35 |
| View (mm) | ɸ40 |
| Lens Type | Round Series interchangeable lens system |
| AR (anti-reflection) Coated Lens Setting | Available |
| Lens Material | Optical glass |
| Lens Configuration | 3 phase/5pcs (polarization filter equipped as standard) |
| Weight (g) | 1350 |
| Compatible models | SKKL, ENVL series, and O-LIGHT-F series |
