Product features

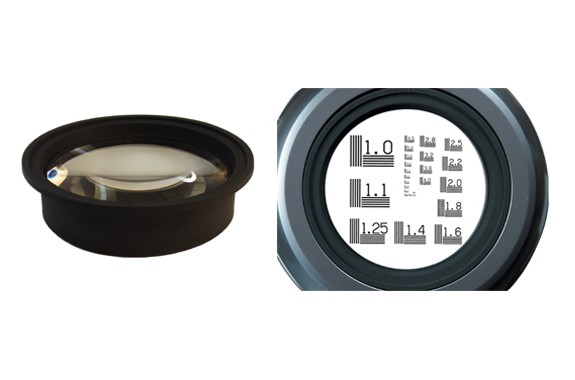

The interchangeable lens system has a rubber mounting frame set in the lens and has compatibility with lenses of various magnifications in one product. The middle magnification range of the replacement lens system is excellent in balance between workability in a wide field of view and moderate magnification and therefore can be used in a variety of fields from 100% inspection to sampling inspection.
Product Name
Interchangeable lens system
Round series 4x
Product sepecifications
| Lens | |
|---|---|
| Magnification | 4x |
| Lens dimensions/eyepiece diameter (mm) | ɸ130 |
| Eyepoint/distance between the eye and lens (mm) | 150 |
| Working distance / distance between the lens and the object (mm) | 110 |
| View (mm) | ɸ120 |
| Lens Type | Round Series interchangeable lens system |
| AR (anti-reflection) Coated Lens Setting | Available |
| Lens Material | Optical glass |
| Lens Configuration | 2 pcs |
| Weight (g) | 700 |
| Compatible models | SKKL, ENVL LSKs, LSK, and O-LIGHT-F series |
