Product features
The WIDE interchangeable lens system has a rubber mounting frame set in the lens, so has the compatibility to use lenses of 2x, 3x, and 4x magnifications in one product. The low magnification lens of the replacement lens system is close to the visual observation with the naked eye, and its benefit is using it without feeling discomfort.
The wide field of view provided by the WIDE replacement lens will contribute to improving the visual inspection.
Product Name

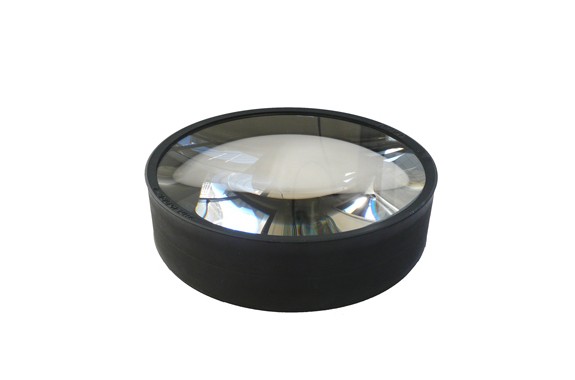

WIDE interchangeable lens system
WIDE 4x
Product sepecifications
| Lens | |
|---|---|
| Magnification | 4x |
| Lens dimensions/eyepiece diameter (mm) | ɸ150 |
| Eyepoint/distance between the eye and lens (mm) | 150 |
| Working distance / distance between the lens and the object (mm) | 100 |
| View (mm) | ɸ160 |
| Lens Type | WIDE interchangeable lens system |
| AR (anti-reflection) Coated Lens Setting | Available |
| Lens Material | Optical glass |
| Lens Configuration | 2 piece |
| Weight (g) | 1150 |
| Compatible models | LSKs WIDE, LSK WIDE, LEKs WIDE, and LEK WIDE series |
